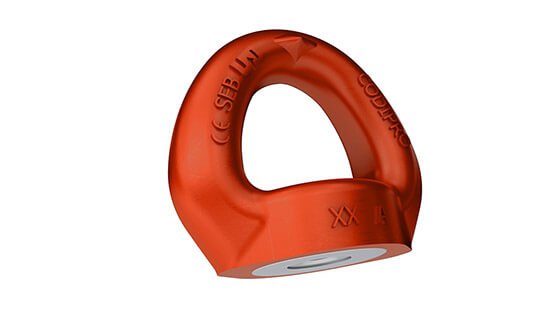

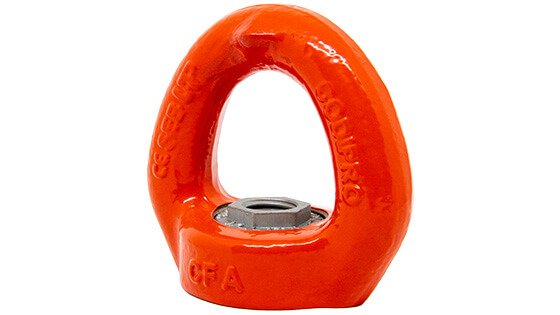

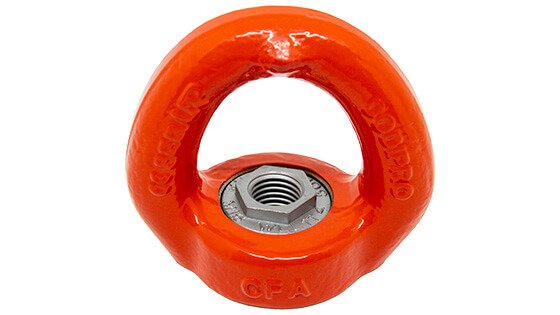

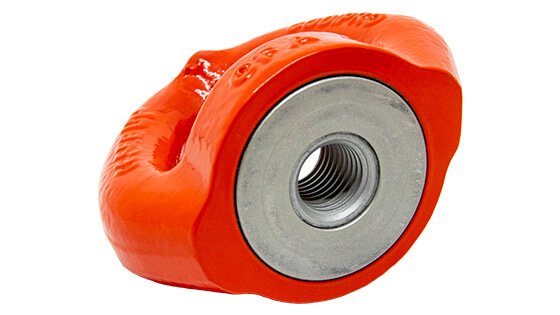

Female swivel eye bolt FE.SEB

0.00

Rated 0 out of 5
(0 customer reviews)

In stock

  • Standard metric and UNC threads available:M 8 to M36 – WLL from 0.40 t to 11.00 t
    UNC 3/8″ to UNC 1″ 1/2 – CMU from 1,200 lbs to 13,800 lbs
  • Safety factor4:1 and 5:1
  • Swiveling under load
  • 360°rotation
  • Complies with the Machinery Directive2006/42/CE
  • Manufactured in compliance with theEN 1677-1 norm
  • Individual traceability number

Description

The FE.SEB female swivel eye bolt is a single swivel ring. It is equipped with a self-orientation system that always guides it perfectly in the sling direction. It is composed of a GRADUP lifting ring which allows the hook to move parallel to the ring’s bearing surface when lifting at 90°. It is designed to perform lifts including load rotation and can be used for any lifting configuration (straigt lift, with angle, tilting, rotating).

The FE.SEB lifting ring is designed for use in a temperature range from -20°c to +200°c and carries various markings, including CE, WLL and tightening torque. It is manufactured in compliance with the REACH regulation and is also available as male version.
