Description

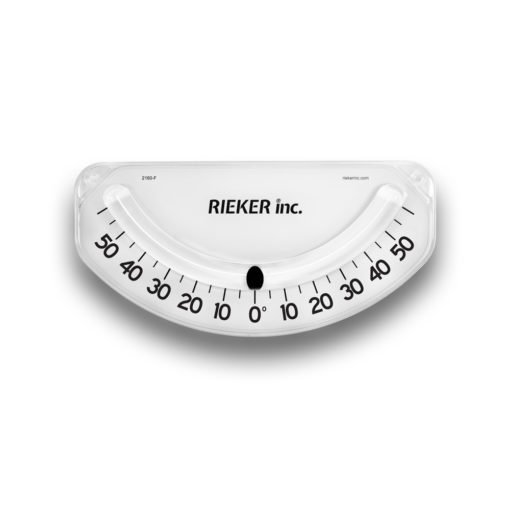

2160-F Oversized Mechanical Inclinometer

The 2160-F Oversized Mechanical Inclinometer is a rugged mechanical angle-measuring instrument designed for clear, quick and reliable inclination readings in demanding industrial environments. Manufactured by Rieker, this inclinometer uses precision tube-and-ball construction with a damping fluid that controls ball movement for smooth and easy-to-read measurements.

The oversized display provides large, clear degree markings, making the 2160-F suitable for applications where the operator needs to read the inclination quickly from a practical viewing distance. Its rugged ballistic-plastic housing and wide operating temperature range make it suitable for indoor and outdoor use across a variety of industrial and equipment applications.

Key Features

• Mechanical inclinometer with an oversized, easy-to-read display.
• Measurement range of ±60 degrees.
• 5-degree measurement increments.
• Precision tube-and-ball construction for smooth indication.
• Proprietary damping fluid helps control ball movement for steady readings.
• Rugged ballistic-plastic housing designed for demanding environments.
• Operating temperature range from -45°C to 82°C.
• Black housing with clear white degree markings.
• Custom colour warning zones and alternative measuring scales can be requested where available.

Technical Specifications

How the 2160-F Mechanical Inclinometer Works

The instrument uses a precision tube-and-ball system. As the equipment or surface changes angle, the ball moves inside the fluid-filled tube and aligns with the graduated scale. The damping fluid controls movement so the indication settles smoothly, helping the operator obtain a clear reading.

Applications

The 2160-F can be used wherever a clear mechanical indication of inclination is required. Typical applications include industrial machinery, equipment alignment, mobile and stationary equipment, engineering installations, maintenance operations, fabrication, construction equipment and other applications requiring a rugged visual angle indicator.

Operating Environment

The rugged housing and -45°C to 82°C operating temperature range make the 2160-F suitable for a broad range of environmental conditions. Always confirm that the instrument’s specified operating conditions and installation requirements are suitable for the intended application.

Custom Configuration

The 2160-F can be requested with custom colour warning zones or a different measuring scale where supported by the manufacturer. Contact SIAM MRO with your application requirements if you need a customized configuration.

Mechanical Inclinometer Supplier in India

SIAM MRO supplies industrial measurement and MRO products to customers across India. The 2160-F Oversized Mechanical Inclinometer is suitable for customers who need a rugged, easy-to-read mechanical angle indicator for industrial equipment and applications. Contact SIAM MRO for product availability, sourcing assistance and quotation support.

Frequently Asked Questions

What is the measurement range of the 2160-F?

The 2160-F has a measurement range of ±60 degrees with 5-degree increments.

What is the housing made from?

The 2160-F uses a rugged ballistic-plastic housing designed for demanding environmental conditions.

What is the operating temperature range?

The specified operating temperature range is -45°C to 82°C.

Is the 2160-F available with custom markings?

Custom colour warning zones or a different measuring scale may be available. Contact SIAM MRO to discuss your specific requirement before ordering.

Where can I buy the 2160-F mechanical inclinometer in India?

SIAM MRO supplies the Rieker 2160-F Oversized Mechanical Inclinometer in India. Contact the SIAM MRO team for availability and quotation assistance.
