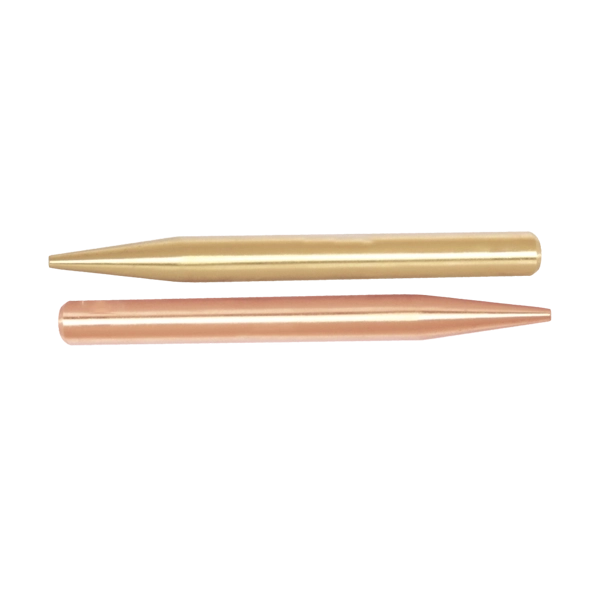

Our Non-Sparking Punch is the best alternative to regular tools and finds application in potentially explosive environments.
Non-Sparking Tools are mandatory in any environment where an ignition source can result in a fire or explosion.
Our tools are tested and comply with IS 4595 standards for non-sparking properties.
| L mm : | 150 |
|---|---|
| f mm : | 5, 6, 7, 8 |
| f1 mm : | 11, 12, 14 |
| MOC : | Aluminium Bronze, Beryllium Copper |
| Item Name | P/N | f (mm) | f1 (mm) | L (mm) |
|---|---|---|---|---|
| Punch | SVCC-1002 | 5 | 11 | 150 |
| Punch | SVCC-1004 | 6 | 12 | 150 |
| Punch | SVCC-1006 | 7 | 13 | 150 |
| Punch | SVCC-1008 | 8 | 14 | 150 |
| Copper-Beryllium Alloy (Be-Cu) | Aluminium-Bronze Alloy (Al-Br) | |
|---|---|---|
| Composition |
Be: 1.8%–2% Ni+Co: 0.2%–1.2% Others: <0.5% Rest: Cu |
Al: 10%–12% Ni: 4%–6% Fe+Mn: <5.8% Others: <0.5% Rest: Cu |
| Hardness | 283–365 Brinell | 229–291 Brinell |
| Tensile Strength | ~1250 N/mm² | ~800 N/mm² |
