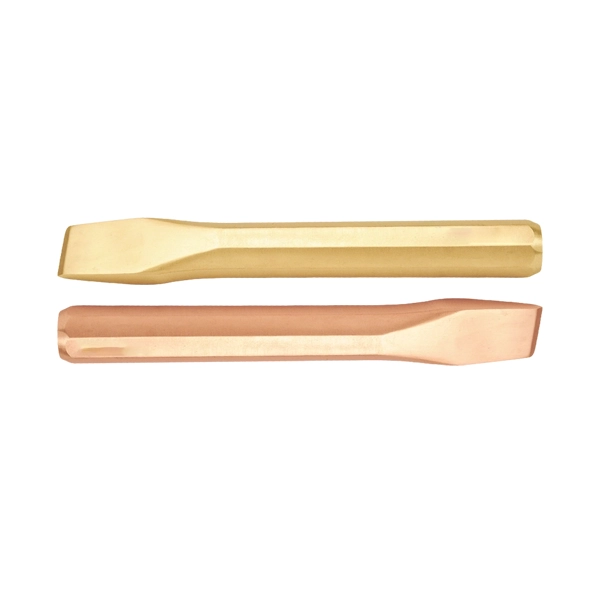

Our Non-Sparking Octagonal Chisel is the best alternative to regular tools and finds application in potentially explosive environments.
Non-Sparking Tools are mandatory in any environment where an ignition source can result in a fire or explosion.
Our tools are tested and comply with IS 4595 standard for non-sparking properties.
| L mm : | 160, 180, 200, 250, 300, 400 |
|---|---|
| S mm : | 14, 16, 19, 22, 24, 30, 27 |
| B mm : | 14, 16, 19, 22, 24, 27, 30 |
| MOC : | Aluminium Bronze, Beryllium Copper |
| Item Name | P/N | L (mm) | S (mm) | B (mm) |
|---|---|---|---|---|
| Octagonal Chisel | SWC-1002 | 160 | 14 | 14 |
| Octagonal Chisel | SWC-1004 | 160 | 16 | 16 |
| Octagonal Chisel | SWC-1006 | 180 | 19 | 19 |
| Octagonal Chisel | SWC-1008 | 200 | 19 | 19 |
| Octagonal Chisel | SWC-1010 | 200 | 22 | 22 |
| Octagonal Chisel | SWC-1012 | 250 | 24 | 24 |
| Octagonal Chisel | SWC-1014 | 300 | 24 | 24 |
| Octagonal Chisel | SWC-1016 | 300 | 30 | 30 |
| Octagonal Chisel | SWC-1018 | 400 | 27 | 27 |
| Copper-Beryllium Alloy (Be-Cu) | Aluminium-Bronze Alloy (Al-Br) | |
|---|---|---|
| Composition |
Be: 1.8%–2% Ni+Co: 0.2%–1.2% Others: <0.5% Rest: Cu |
Al: 10%–12% Ni: 4%–6% Fe+Mn: <5.8% Others: <0.5% Rest: Cu |
| Hardness | 283–365 Brinell | 229–291 Brinell |
| Tensile Strength | ~1250 N/mm² | ~800 N/mm² |
